Stainless Steel Wire Mesh Cloth
“Sourcing high-performance filtration media from a verified stainless steel filter wire mesh cloth supplier? As a leading ISO-certified manufacturing facility, we specialize in supplying premium stainless steel wire cloth mesh and custom-woven stainless steel wire mesh cloth for heavy industrial processing. Engineered with precision mechanical consistency, our industrial-grade stainless steel mesh wire cloth delivers exceptional tensile strength, uniform aperture spacing, and extreme thermal resistance. Whether you require standard rolls from 1 to 635 mesh or specialized cut-to-size filter elements, contact our engineering division for a factory-direct quote today.”

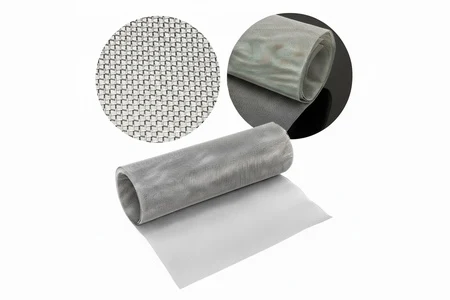

What Is an Stainless Steel Wire Mesh Cloth?
Stainless steel wire mesh cloth is also known as stainless steel woven wire mesh roll or stainless steel woven wire mesh. It is a durable, corrosion-resistant material made by weaving stainless steel wires into precise mesh patterns. This stainless steel mesh cloth is widely used in industrial filtration, screening, and separation applications due to its high strength and long service life.
High-quality stainless steel woven wire mesh cloth is commonly manufactured using 304 stainless steel wire mesh cloth or 316 stainless steel wire mesh cloth. These materials offer excellent performance in harsh environments, including chemical processing, marine applications, and food processing industries.
Because of its versatility, stainless steel filter mesh cloth is one of the most reliable solutions for industrial filtration and screening systems.
Type of Stainless Steel Wire Mesh Cloth?
There are several types of stainless steel woven mesh cloth available, each type is designed for specific applications.
Plain Weave
Plain Weave Stainless Steel Wire Mesh Cloth
Plain-weave stainless steel mesh cloth is the most commonly used type. It provides uniform openings and is ideal for general filtration and screening.
Common uses include:
- Industrial filtration
- Air filtration systems
- Protective screens
Twill Weave
Twill Weave Stainless Steel Mesh Cloth
Twill weave stainless steel wire mesh cloth offers higher strength and allows finer mesh counts. This makes it ideal for heavy-duty industrial filtration.
Applications include:
- Pressure filtration
- Chemical filtration
- Industrial screening
Dutch Weave
Dutch Weave Stainless Steel Filter Mesh Cloth
Dutch weave stainless steel filter mesh cloth provides extremely fine filtration and high strength. It is commonly used in high-precision filtration systems.
Applications include:
- Oil filtration
- Pharmaceutical filtration
- Chemical processing filtration
Our Stainless Steel Wire Mesh Cloth Specifications
- Material: stainless steel 304, 304L, 316, 316L, 321, 430, 317L, 904L, etc.
- Wire diameter: 0.02–2 mm
- Mesh count: 2.1–635 mesh
- Aperture width: 0.02–10.1 mm
- Open screening area: 25% – 71%
| Mesh Count | Wire Diameter (Inch) | Wire Diameter (mm) | Aperture (Inch) | Aperture (mm) | Open Area (%) | Max. Width (mm) | Theoretical Weight （kg/sqm） |
|---|---|---|---|---|---|---|---|
| 1 × 1 | 0.08" | 2.03 | 0.92" | 23.37 | 84.6 | 2000 | 2.06 |
| 2 × 2 | 0.063" | 1.6 | 0.437" | 11.1 | 76.4 | 2000 | 2.56 |
| 3 × 3 | 0.054" | 1.37 | 0.279" | 7.09 | 70.1 | 2000 | 2.82 |
| 4 × 4 | 0.063" | 1.6 | 0.187" | 4.75 | 56 | 2000 | 5.12 |
| 4 × 4 | 0.047" | 1.19 | 0.203" | 5.16 | 65.9 | 2000 | 2.83 |
| 5 × 5 | 0.041" | 1.04 | 0.159" | 4.04 | 63.2 | 2000 | 2.7 |
| 6 × 6 | 0.035" | 0.89 | 0.132" | 3.35 | 62.7 | 2000 | 2.38 |
| 8 × 8 | 0.028" | 0.71 | 0.097" | 2.46 | 60.2 | 2000 | 2.02 |
| 10 × 10 | 0.025" | 0.64 | 0.075" | 1.91 | 56.3 | 2000 | 2.05 |
| 10 × 10 | 0.02" | 0.51 | 0.08" | 2.03 | 64 | 2000 | 1.3 |
| 12 × 12 | 0.023" | 0.584 | 0.06" | 1.52 | 51.8 | 2000 | 2.05 |
| 12 × 12 | 0.02" | 0.508 | 0.063" | 1.6 | 57.2 | 2000 | 1.55 |
| 14 × 14 | 0.023" | 0.584 | 0.048" | 1.22 | 45.2 | 2000 | 2.39 |
| 14 × 14 | 0.02" | 0.508 | 0.051" | 1.3 | 51 | 2000 | 1.81 |
| 16 × 16 | 0.018" | 0.457 | 0.0445" | 1.13 | 50.7 | 2000 | 1.67 |
| 18 × 18 | 0.017" | 0.432 | 0.0386" | 0.98 | 48.3 | 2000 | 1.68 |
| 20 × 20 | 0.02" | 0.508 | 0.03" | 0.76 | 36 | 2000 | 2.58 |
| 20 × 20 | 0.016" | 0.406 | 0.034" | 0.86 | 46.2 | 2000 | 1.65 |
| 24 × 24 | 0.014" | 0.356 | 0.0277" | 0.7 | 44.2 | 2000 | 1.52 |
| 30 × 30 | 0.013" | 0.33 | 0.0203" | 0.52 | 37.1 | 2000 | 1.63 |
| 30 × 30 | 0.012" | 0.305 | 0.0213" | 0.54 | 40.8 | 2000 | 1.4 |
| 30 × 30 | 0.009" | 0.229 | 0.0243" | 0.62 | 53.1 | 2000 | 0.79 |
| 35 × 35 | 0.011" | 0.279 | 0.0176" | 0.45 | 37.9 | 2000 | 1.36 |
| 40 × 40 | 0.01" | 0.254 | 0.015" | 0.38 | 36 | 2000 | 1.29 |
| 50 × 50 | 0.009" | 0.229 | 0.011" | 0.28 | 30.3 | 2000 | 1.31 |
| 50 × 50 | 0.008" | 0.203 | 0.012" | 0.31 | 36 | 2000 | 1.03 |
| 60 × 60 | 0.0075" | 0.191 | 0.0092" | 0.23 | 30.5 | 2000 | 1.09 |
| 60 × 60 | 0.007" | 0.178 | 0.0097" | 0.25 | 33.9 | 2000 | 0.95 |
| 70 × 70 | 0.0065" | 0.165 | 0.0078" | 0.2 | 29.8 | 2000 | 0.95 |
| 80 × 80 | 0.0065" | 0.165 | 0.006" | 0.15 | 23 | 2000 | 1.09 |
| 80 × 80 | 0.0055" | 0.14 | 0.007" | 0.18 | 31.4 | 2000 | 0.78 |
| 90 × 90 | 0.005" | 0.127 | 0.0061" | 0.16 | 30.1 | 2000 | 0.73 |
| 100 × 100 | 0.0045" | 0.114 | 0.0055" | 0.14 | 30.3 | 2000 | 0.65 |
| 100 × 100 | 0.004" | 0.102 | 0.006" | 0.15 | 36 | 2000 | 0.52 |
| 100 × 100 | 0.0035" | 0.089 | 0.0065" | 0.17 | 42.3 | 2000 | 0.4 |
| 110 × 110 | 0.004" | 0.1016 | 0.0051" | 0.1295 | 30.7 | 2000 | 0.57 |
| 120 × 120 | 0.0037" | 0.094 | 0.0064" | 0.1168 | 30.7 | 2000 | 0.53 |
| 150 × 150 | 0.0026" | 0.066 | 0.0041" | 0.1041 | 37.4 | 2000 | 0.33 |
| 160 × 160 | 0.0025" | 0.0635 | 0.0038" | 0.0965 | 36.4 | 2000 | 0.32 |
| 180 × 180 | 0.0023" | 0.0584 | 0.0033" | 0.0838 | 34.7 | 2000 | 0.31 |
| 200 × 200 | 0.0021" | 0.0533 | 0.0029" | 0.0737 | 33.6 | 2000 | 0.28 |
| 250 × 250 | 0.0016" | 0.0406 | 0.0024" | 0.061 | 36 | 2000 | 0.21 |
| 270 × 270 | 0.0016" | 0.0406 | 0.0021" | 0.0533 | 32.2 | 2000 | 0.22 |
| 300 × 300 | 0.0051" | 0.0381 | 0.0018" | 0.0457 | 29.7 | 2000 | 0.22 |
| 325 × 325 | 0.0014" | 0.0356 | 0.0017" | 0.0432 | 30 | 2000 | 0.21 |
| 400 × 400 | 0.001" | 0.0254 | 0.0015" | 0.37 | 36 | 2000 | 0.13 |
| 500 × 500 | 0.001" | 0.0254 | 0.001" | 0.0254 | 25 | 2000 | 0.16 |
| 635 × 635 | 0.0008" | 0.0203 | 0.0008" | 0.0203 | 25 | 2000 | 0.13 |
Stainless Steel Wire Mesh Cloth Material Grade?
Selecting the right material grade is more important than the weave itself. In industrial filtration, choosing the wrong grade doesn’t just lead to a shorter lifespan, but also leads to “product migration” (where the mesh breaks the filtered fluid) or total system failure. That will cause too many problems. We mainly provide 304 and 316 stainless steel wire mesh cloth.
We provide high-quality stainless steel wire mesh cloth available in various alloys. Our production strictly follows the AISI stainless steel grade specifications, ensuring that our T-304 and T-316L mesh offer superior durability and chemical stability.
Note: Beyond standard SUS 304 and 316L, we offer premium specialty alloys to tackle extreme engineering challenges. Choose Grade 321 for high-temperature stabilization up to 800 °C; Grade 430 for cost-effective magnetic separation applications; and Grades 317L & 904L (Super Austenitic) for unparalleled resistance against highly aggressive chemical acids and marine environments.
Stainless Steel Wire Mesh Cloth Material Composition (Chemical Content)
| Material Grade | Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) | Carbon (C) | Key Advantage |
|---|---|---|---|---|---|
| SS 304 | 18% - 20% | 8% - 10.5% | - | ≤ 0.08% | Universal grade, high cost-performance. |
| SS 304L | 18% - 20% | 8% - 12% | - | ≤ 0.03% | Ideal for welded screen packs. |
| SS 316 | 16% - 18% | 10% - 14% | 2% - 3% | ≤ 0.08% | Superior resistance to corrosion & pitting. |
| SS 316L | 16% - 18% | 10% - 14% | 2% - 3% | ≤ 0.03% | Best for high-temp, acidic extrusion. |
| SS 321 | 17% - 19% | 9% - 12% | - | ≤0.08% | Titanium stabilized; excellent intergranular corrosion resistance up to 800∘C. |
| SS 430 | 16% - 18% | ≤0.75% | - | ≤0.12% | Ferritic non-nickel alloy; high thermal conductivity with excellent magnetic properties. |
| SS 317L | 18% - 20% | 11% - 15% | 3% - 4% | ≤0.03% | Higher Mo content than 316L; superior resistance to severe chemical acids & pitting. |
| SS 904L | 19% - 23% | 23% - 28% | 4% - 5% | ≤0.02% | Super austenitic with Added Copper (Cu); ultimate resistance to high-concentration sulfuric acid. |
304 Stainless Steel Woven Wire Mesh

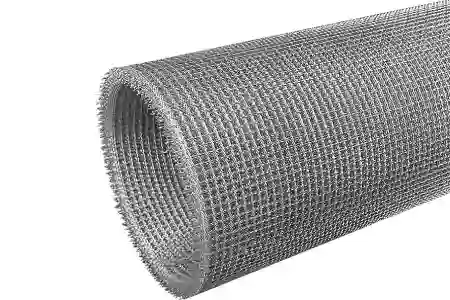

304 Stainless Steel Wire Mesh Cloth
304 stainless steel mesh cloth is the most commonly used grade. Suitable for most industrial filtration applications. The most widely used grade. It contains 18% chromium and 8% nickel. It is best for general industrial use, food processing, and basic water filtration.
It offers:
- Excellent corrosion resistance
- Affordable cost
- Reliable durability
316/316L Stainless Steel Woven Wire Mesh

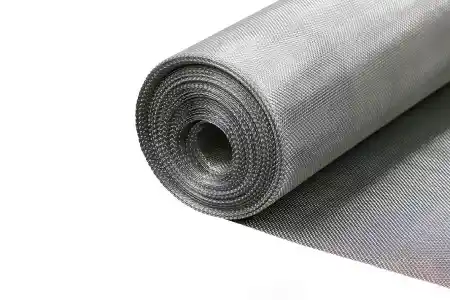

316/316L Stainless Steel Wire Mesh Cloth
316 stainless steel wire mesh cloth offers superior corrosion resistance compared to 304 stainless steel.
Benefits include:
- Excellent resistance to chemicals and saltwater
- Ideal for marine environments
- Suitable for the food and pharmaceutical industries
- Longer lifespan in harsh environments
Applications of Stainless Steel Wire Mesh Cloth?

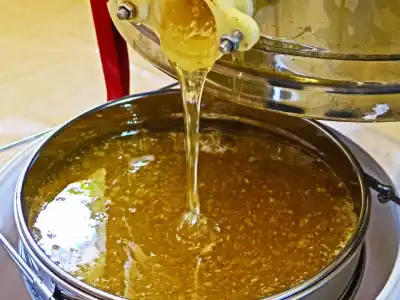

Industrial Filtration
Applications include:
- Oil and gas
- Chemical processing
- Pharmaceutical production

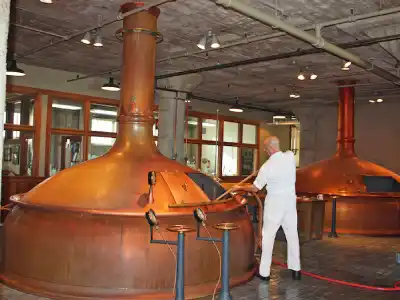

Food Processing Industry
Applications include:
- Food filtration
- Drying equipment
- Processing systems

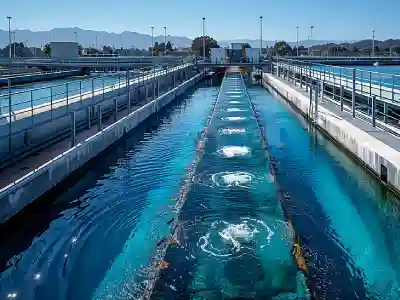

Water Treatment
Applications include:
- Water purification systems
- Wastewater treatment
- Industrial water filtration

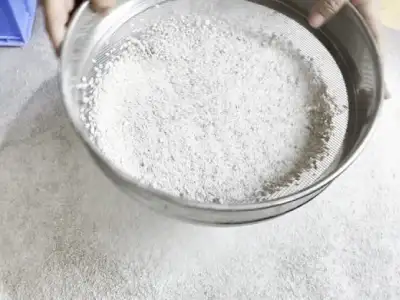

Screening and Sieving
Applications include:
- Mining
- Agriculture
- Powder processing
Our Export Shipping & Packing Details
At Xuancheng, we provide professional export packaging, including individual protective bags and reinforced cartons with waterproof film. Our logistics team ensures safe delivery to global markets via sea and air.
FAQ on Stainless Steel Wire Cloth Mesh
What are the most common grades of stainless steel wire mesh cloth?
The most widely used grades are T-304 and T-316. T-304 is the industry standard for general filtration due to its excellent balance of strength and cost. However, for highly corrosive environments or food and medical applications, T-316L is preferred for its superior resistance to chemicals and oxidation.
How do I calculate the mesh count of a wire mesh cloth?
Mesh count refers to the number of openings per linear inch. To measure it, count the number of openings from the center of one wire to the center of another wire exactly one inch away. We offer custom mesh counts ranging from coarse to ultra-fine to meet your specific extrusion or filtration requirements. Check our latest blog to know: How to Measure Mesh Screen Size: The Ultimate Professional Guide
What is the difference between Plain Weave and Dutch Weave?
Plain Weave: Each warp wire crosses alternately over and under each weft wire, creating a simple and sturdy square opening.
Dutch Weave: Uses fewer, heavier warp wires and more, finer weft wires, resulting in a high-precision filtration medium with much finer openings and superior mechanical strength.
Can stainless steel wire mesh cloth be used in high-temperature filtration?
Yes, it is specifically engineered for high-temperature performance. Our 300-series stainless steel cloth can typically withstand temperatures up to 800°C (1472°F) depending on the specific alloy and application environment which makes it ideal for polymer melt and industrial exhaust filtration.
Is custom-sized stainless steel wire mesh cloth available?
Absolutely. As a leading manufacturer since 2007, we provide flexible customization options. We can supply the wire mesh cloth in full rolls, or cut-to-size discs, strips, and cylinders to fit your existing machinery perfectly. We can provide ODM stainless steel filter wire mesh cloth and oem stainless steel wire mesh cloth.
Which is the popular SS wire cloth mesh?
- 100 mesh stainless steel wire cloth
- 120 mesh stainless steel wire cloth
