Quick Answer: Extruder filter rim types provide essential sealing and structural support for screen packs. The most common types include Aluminum rims, Stainless Steel frames, and Copper edging. Choosing the right rim ensures a leak-proof fit in automatic screen changers, prevents unfiltered polymer bypass during high-pressure extrusion and can extend the lifespan of your breaker plate by up to 30%.
Detailed Classification of Extruder Filter Rim Solutions
Aluminum Rimmed Filter Packs

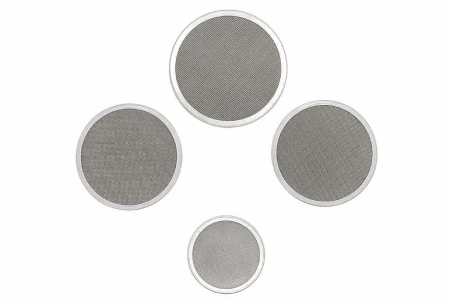

Technical Detail: Aluminum rims are highly valued for their superior ductility. Under high extrusion temperatures and mechanical pressure, the aluminum edge undergoes controlled micro-deformation, acting as a functional gasket. This allows the filter to perfectly fill tolerance gaps within the screen changer slot.
Expert Advice: These are the most cost-effective solutions for standard PP/PE plastic recycling. If your equipment has minor surface wear on the breaker plate, aluminum edging provides the best leak-proof performance.
Stainless Steel Framed Screen Packs

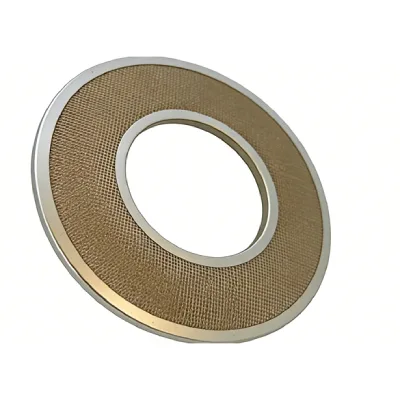

Technical Detail: Constructed using precision-stamped SS 304 or SS 316 strips, these frames offer maximum structural integrity. They can endure instantaneous pressure fluctuations exceeding 300 Bar without rim distortion or bypass.
Expert Advice: Recommended for high-temperature extrusion where aluminum contamination must be avoided. Essential for heavy-duty industrial applications requiring resistance to corrosive melt additives.
Copper & Brass Edged Filters

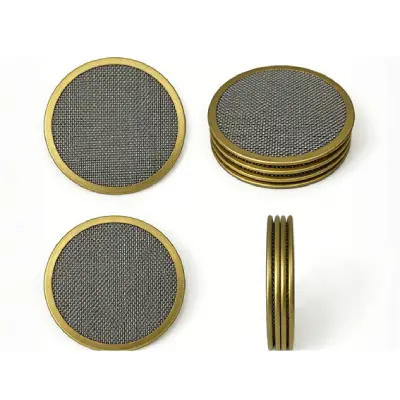

Technical Detail: Copper rims provide the highest level of thermal conductivity. The rapid heat transfer ensures the polymer at the edges remains at an optimal viscosity, while the soft metal creates an air-tight seal.
Expert Advice: Designed specifically for high-precision applications such as optical-grade films. Copper edging is the ultimate defense against “Specks” caused by minor edge leakage.
Choosing the Best Rim Type for Your Filtration System
To ensure maximum production efficiency, selecting a rim type must balance the operating pressure, chemical compatibility, and machine tolerances. For instance, high-speed recycling lines benefit from the cost-effective sealing of Aluminum, while high-end medical or optical film extruders require the thermal precision of Copper or the heavy-duty structural integrity of Stainless Steel. Refer to the guide below to find the optimal edging solution for your specific polymer processing environment
| Rim Type | Material Used | Max Temp | Sealing Performance | Best Application |
|---|---|---|---|---|
| Aluminum Rim | Soft Aluminum | 450°C | Excellent (Malleable) | Standard PP/PE recycling & pellets. |
| Stainless Steel Rim | SS 304/316 | 600°C+ | High (Rigid) | High-temp & corrosive polymers. |
| Copper Rim | Pure Copper | 500°C | Superior (Soft/Sealing) | Precision optical films & BOPP. |
| No Rim (Welded) | N/A | Dependent on Mesh | Standard | Low-pressure, cost-sensitive lines. |
Technical Guide: Why Rim Type Affects Your Production Yield
Preventing "Edge Leakage" and Polymer Bypass
In high-pressure extrusion environments, unrimmed screen packs are susceptible to microscopic shifting at the edges. The Rim Edging Process utilizes a mechanical locking mechanism to secure 2-5 mesh layers into a single, unified element. This ensures that 100% of the polymer melt is forced through the active filtration zone and eliminates the risk of “Bypass”—where unfiltered contaminants escape around the periphery of the breaker plate.
Elimination of "Dead Zones" and Material Carbonization
Standard welded packs often create stagnant areas at the interface between the mesh and the screen changer housing. These “dead zones” trap polymer residue, leading to thermal degradation and carbonization over time. Rimmed extruder filters provide a smooth and flush transition that ensures a constant flow velocity, reducing black speck defects by up to 15% in optical-grade production.
Reduction of Mechanical Wear on Sliding Plates
For users of hydraulic or automatic screen changers, the rim acts as a sacrificial protective layer. Encapsulating the sharp wire ends of the mesh, it prevents direct abrasive contact with the sliding plates and sealing blocks. Maintaining a precision rim thickness tolerance (± 0.05mm) can extend the maintenance interval of your screen changer by 25%
Superior Resistance to High Differential Pressure
As contaminants build up, the differential pressure across the screen increases. Unrimmed packs may experience “edge collapse” when ΔP exceeds 150 Bar. Our reinforced Stainless Steel frames provide structural reinforcement that allows the filter to withstand pressures up to 350 Bar, maintaining aperture integrity and preventing mesh rupture.
Optimized Melt Homogeneity and Flow Stability
A securely rimmed filter prevents the “panting effect”—the subtle vibration of mesh layers under fluctuating melt pump speeds. This stability improves melt homogeneity and will lead to a more consistent gauge (thickness) in blown film and sheet extrusion applications, ultimately reducing raw material waste (scrap rate).
Enhanced Safety and Handling in High-Output Lines
In large-scale BOPP or PET spinning plants, manual handling of frayed wire mesh can lead to operator injury and microscopic wire fragments entering the cleanroom environment. The fully encapsulated rim ensures “zero wire migration,” protecting both your personnel and the high-value purity of your final polymer product.
Achieving Long-term Operational Excellence
By integrating professional edging solutions, manufacturers can shift from reactive maintenance to proactive yield optimization. The marginal increase in the cost of a rimmed pack is typically offset by the reduction in downtime and the elimination of expensive batch rejections due to edge leakage.
