Premium Extruder Filter Mesh By Shape
In the complex process of polymer processing, the quality of your final product depends heavily on the efficiency of your filtration system. A high-performance Extruder Filter Screen acts as the critical barrier against contaminants, which can ensure melt purity and protect downstream equipment from damage. Whether you are involved in plastic recycling, blown film extrusion, or profile production, selecting the correct Extruder Filter Mesh is essential for maintaining consistent pressure and flow.

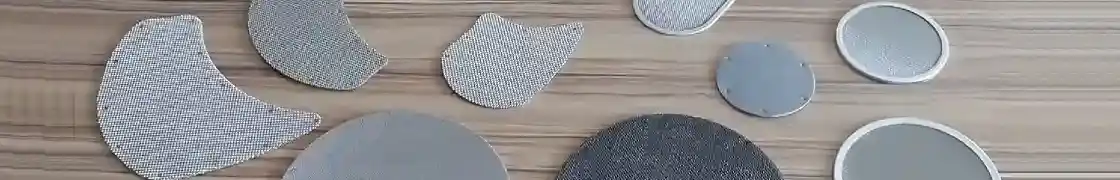

At Xuancheng, we understand that standard sizes don’t always fit specialized machinery. That is why we offer a comprehensive range of filtration solutions categorized By Shape. From standard circular discs to complex geometric profiles. Our precision laser-cutting technology ensures every piece fits your screen changer perfectly, and our 100% full inspection can keep the quality.
Detailed Shape Guide & Application Scenarios
Usage Scenario: This is the most versatile shape used in nearly all standard melt filtration systems. They are ideal for single-screw extruders producing pellets, pipes, and basic profiles.
In fiber spinning, multi-layer spot-welded discs are preferred for their ability to withstand high pressure while maintaining ultra-fine filtration.
Square & Rectangular Mesh
Usage Scenario: Primarily utilized in sheet and plate extrusion lines where the filter area is broad.
These shapes are also frequently used as pre-filtration layers in large-capacity recycling machines to intercept coarse debris before the melt reaches finer meshes.
Oval & Elliptical Filters
Usage Scenario: Often found in specialized European extrusion machinery and high-pressure hydraulic screen changers.
The elongated shape provides a larger surface area relative to the machine’s width, it is help to reduce the frequency of screen changes and stabilizing melt temperature.
Kidney-Shaped Screens
Usage Scenario: Specifically engineered for twin-screw extruders and continuous flow screen changers.
Their unique “crescent” profile allows them to fit into the interlocking zones of the screw chambers, making them indispensable for high-output plastic recycling systems.
Usage Scenario: Used in applications requiring 3D filtration depth rather than just surface filtration.
Cones are highly effective in blow molding and masterbatch production, as they offer significantly more surface area, leading to lower pressure drops and longer service life.
Custom & Special Shapes
Usage Scenario: For proprietary machinery or OEM replacements, we manufacture bespoke shapes, including ring-donuts, triangles, or multi-segmented packs.
These are tailored for innovative filtration designs where standard geometric shapes cannot provide the required seal or flow path
Product List By Shape
What about the Cost of Extruder Screen Mesh?
Request a Quote Now!
FAQ on Extruder Filter Mesh
What is the difference between Grade 304 and Grade 316?
- Grade 304: The industry standard. It offers excellent strength and durability for most residential areas.
- Grade 316: Contains molybdenum, which provides superior resistance to chlorides (salt). It is highly recommended for coastal properties (within 5-10km of the ocean) to prevent “tea staining” or surface rust.
What micron ratings can you provide?
Micron ratings depend on mesh structure and material type. Custom requirements can usually be discussed based on your application.
Can stainless steel mesh filter discs be reused?
Of course, many stainless steel mesh filter discs are washable and reusable, especially in industrial filtration systems.
Do you offer custom sizes and shapes?
Yes, we are stainless steel mesh filter disc factory, custom diameters, shapes, mesh counts, and edge treatments are both available.
What is the difference between woven mesh and sintered mesh filter discs?
Woven mesh offers flexibility and cost efficiency, while sintered mesh generally provides greater strength and stability.
Are stainless steel mesh filter discs suitable for high-temperature applications?
Yes, they are often used in demanding environments where heat resistance and structural durability are important. The multi-layer stainless steel mesh filter discs, sintered stainless steel mesh filter discs and spot welded and framed filter discs performance better in high temperatures.
