Industrial Extruder Filter Screens & Wire Mesh Catalog
Explore our complete range of precision filter discs, continuous belt screens, extruder screen packs, and custom woven mesh solutions.
Our Product List
Type of Stainless Steel Wire Mesh Cloth?
There are several types of stainless steel woven mesh cloth available, each type is designed for specific applications.

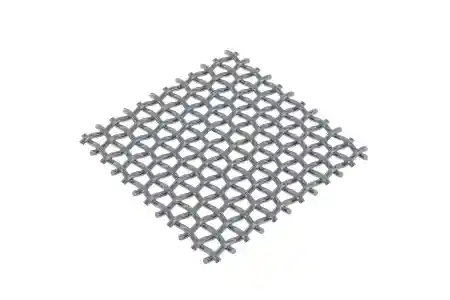

Plain Weave
Plain Weave Stainless Steel Wire Mesh Cloth
Plain weave stainless steel mesh cloth is the most commonly used type. It provides uniform openings and is ideal for general filtration and screening.
Common uses include:
- Industrial filtration
- Air filtration systems
- Protective screens

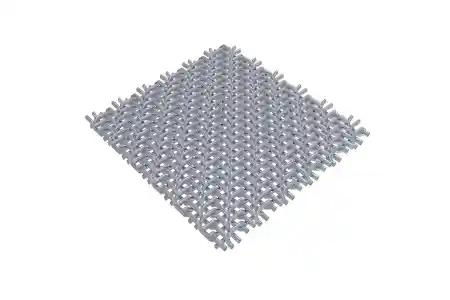

Twill Weave
Twill Weave Stainless Steel Mesh Cloth
Twill weave stainless steel wire mesh cloth offers higher strength and allows finer mesh counts. This makes it ideal for heavy-duty industrial filtration.
Applications include:
- Pressure filtration
- Chemical filtration
- Industrial screening

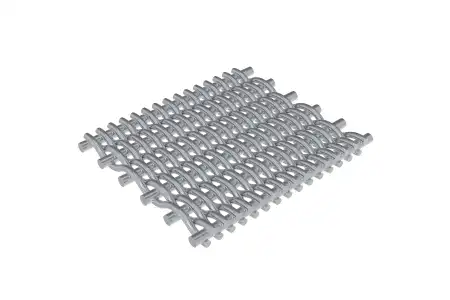

Dutch Weave
Dutch Weave Stainless Steel Filter Mesh Cloth
Dutch weave stainless steel filter mesh cloth provides extremely fine filtration and high strength. It is commonly used in high-precision filtration systems.
Applications include:
- Oil filtration
- Pharmaceutical filtration
- Chemical processing filtration
Stainless Steel Mesh Weave Types Comparison Table
| Weave Type | Micron Rating Range | Pressure Resistance | Structural Features | Primary Best-Fit Application |
|---|---|---|---|---|
| Plain Weave | 63μm – 3000μm (20 – 250 Mesh) | Standard / Moderate | Square openings, maximum open area, uniform flow rate | General polymer screening, liquid filtration, coarse extruder filter packs |
| Twill Weave | 20μm – 200μm (150 – 635 Mesh) | Medium to High | Over-two-under-two pattern; allows thicker wire for finer mesh | High-temp melt filtration, fine polymer processing, chemical sifting |
| Dutch Weave (Plain & Twilled) | 1μm – 100μm (Absolute Fine Micron) | Very High (Extreme Tensile) | Dense compaction, zero direct view-through, maximum burst strength | High-pressure plastic recycling, continuous belt screens, hydraulic & melt oil purification |
Standards Compliance: All wire mesh products are manufactured in accordance with ASTM E2016-20 and ISO 9044 standard specification for industrial woven wire cloth.
Filtration Rating: Micron ratings provided are Nominal Ratings. Absolute rating certifications (e.g., bubble point test data) are available upon request.
Custom Tolerances: Custom wire diameters, alloy grades (304, 316L, 904L, Inconel), and tailored roll widths/disc sizes can be precision-cut according to OEM drawings.
Request a Custom Quote or Free Sample
FAQ on Extruder Filter Screens & Stainless Steel Wire Mesh
What is the difference between Grade 304 and Grade 316?
- Grade 304: The industry standard. It offers excellent strength and durability for most residential areas.
- Grade 316: Contains molybdenum, which provides superior resistance to chlorides (salt). It is highly recommended for coastal properties (within 5-10km of the ocean) to prevent “tea staining” or surface rust.
What micron ratings can you provide?
Micron ratings depend on mesh structure and material type. Custom requirements can usually be discussed based on your application.

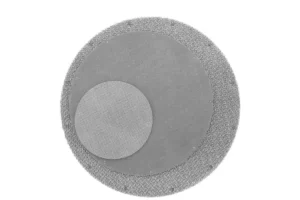

Can stainless steel mesh filter discs be reused?
Of course, many stainless steel mesh filter discs are washable and reusable, especially in industrial filtration systems.
Do you offer custom sizes and shapes?
Yes, we are stainless steel mesh filter disc factory, custom diameters, shapes, mesh counts, and edge treatments are both available.

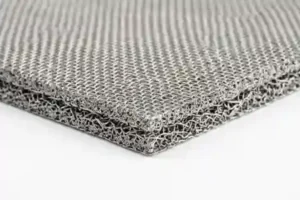

What is the difference between woven mesh and sintered mesh filter discs?
Woven mesh offers flexibility and cost efficiency, while sintered mesh generally provides greater strength and stability.
Are stainless steel mesh filter discs suitable for high-temperature applications?
Yes, they are often used in demanding environments where heat resistance and structural durability are important. The multi-layer stainless steel mesh filter discs, sintered stainless steel mesh filter discs and spot welded and framed filter discs performance better in high temperatures.
